Pallet Truck – Narrow | Long Narrow

Description

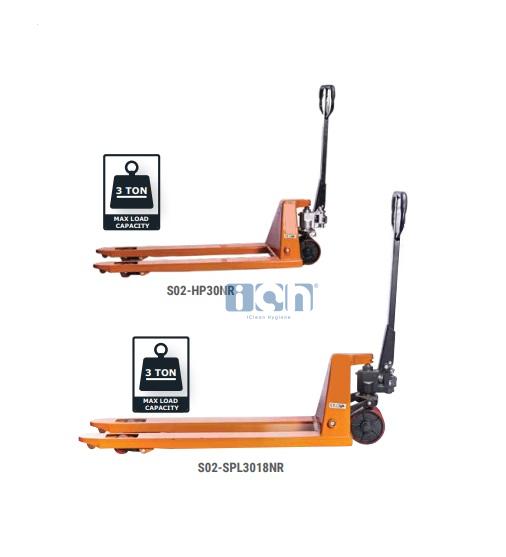

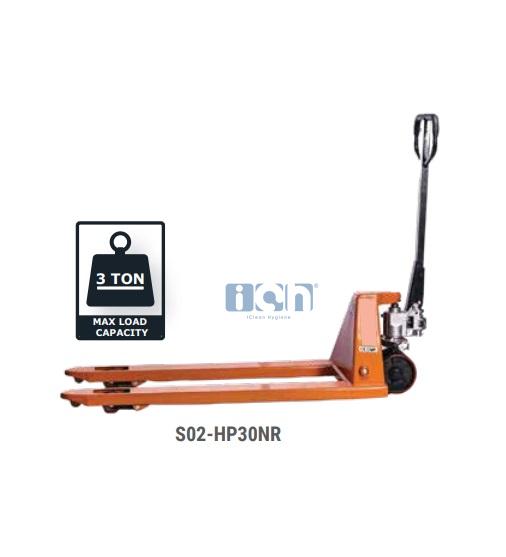

• Code : HP30NR
• Loading Capacity : 3000 KG
• Overall Dimension : 85 W x 550 L x 1150 H (mm)
• Fork Height Lowered, Raised : 85, 195 mm
• Fork Width :160 mm
• Internal Fork Width : 230 mm
• Overall Fork Width : 550 mm
• Fork Length : 1150 mm
• Load Wheel : 80 x 93 mm Single PU
• Steering Wheel : 180 x 50 mm PU
• Fork Type : Standard Narrow

———————-              ———————–

• Code : SPL3015
• Loading Capacity : 3000 KG
• Overall Dimension : 85 W x 550 L x 1500 H (mm)
• Fork Height Lowered, Raised : 85, 195 mm
• Fork Width :160 mm
• Internal Fork Width : 230 mm
• Overall Fork Width : 550 mm
• Fork Length : 1500 mm
• Load Wheel : 80 x 93 mm Single PU
• Steering Wheel : 180 x 50 mm PU
• Fork Type : Narrow Super Long

———————-              ———————–

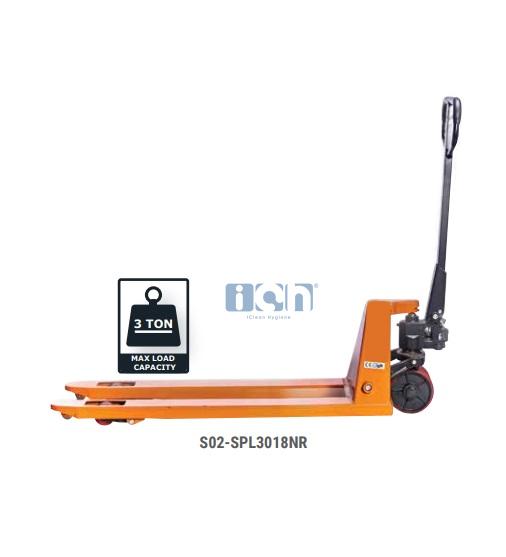

• Code : SPL3018NR
• Loading Capacity : 3000 KG
• Overall Dimension : 85 W x 550 L x 1800 H (mm)
• Fork Height Lowered, Raised : 85, 195 mm
• Fork Width :160 mm
• Internal Fork Width : 230 mm
• Overall Fork Width : 550 mm
• Fork Length : 1800 mm
• Load Wheel : 80 x 93 mm Single PU
• Steering Wheel : 180 x 50 mm PU
• Fork Type : Narrow Super Long

Pallet truck with ergonomic design

• Ergonomic handle for optimum control.
• Reinforced fork tips for strength & durability.
• Durable hydraulic pump for maneuverability.
• Polyurethane wheels for longer lifespan & reliability.
• Epoxy powder coating to resist corrosion & chips.
